ECU lock/password protection

MTune since version 1.103 has the ability to lock certain setting pages in MTune to prevent changes of settings without entering a password set by the tuner.





For the tuner



1. Go online to the MaxxECU you need to lock certain features on.

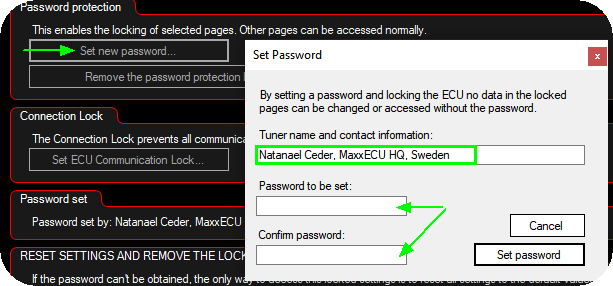

2. Navigate to Configuration --> ECU lock and press the "Set new password..." button.

clip0907

Enter your tuner name, contact information and enter your password in both fields (passwords are visible when entered). Press the "Set password" button in the lower right corner to confirm.





3. Confirm password set

clip0292

The "Password set" tab is visible and shows information to the customer who is responsible to actually have locked the ECU and their contact information is displayed.





4. Lock tables of interest

clip0293

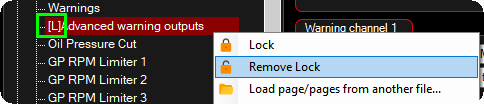

Right click on ANY setting page, select Lock and that table will immediately be locked.





clip0294

A locked table is displayed with a "[L]" in front of the setting page.



Note: The tuner password needs to be entered one time only until MTune is restarted, the tuner can always see and manipulate the tables during the tuning session.







For the customer

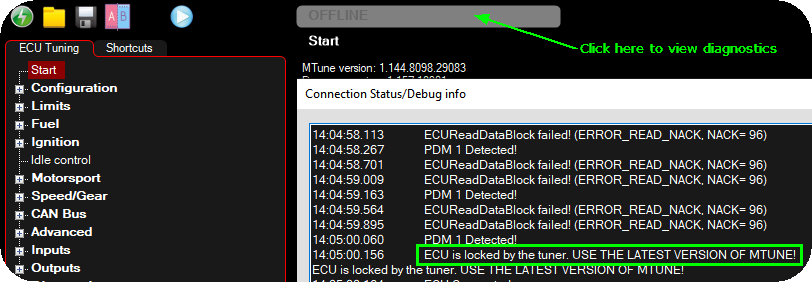

Note: MTune 1.103 and newer MUST be used, otherwise MTune can't communicate with MaxxECU at all if it's locked by a tuner!



1. Go online with MaxxECU MTune.

clip0295

Note the locked setting page ("[L]") which cant be viewed without entering the correct password.

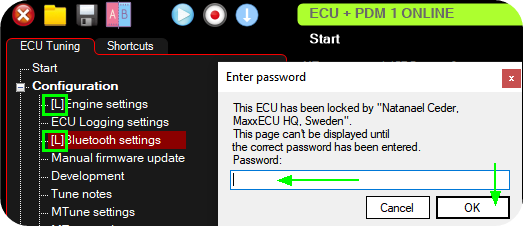

2. Click on the setting page and enter password

clip0296

A new windows appears, enter the correct password (if you have it...)



Wrong password entered

clip0297

If wrong password is entered, the above window will appear and the below information becomes visible after button confirmation.





clip0298

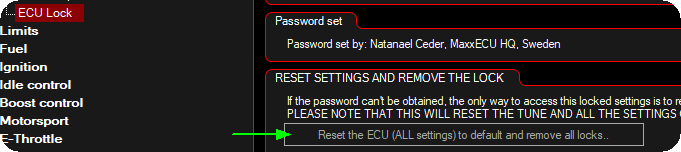

Visible page when a wrong password has been entered:

1.Enter the correct password to unlock the setting page.

2.Reset ALL ECU SETTINGS to default and remove all locks.





Correct password entered

clip0299

The locked setting page will be available when the correct password is entered.





RPM lock



Added in MTune 1.146 a password protected Hard cut RPM can be set, which CANNOT be changed without the correct password.

When ECU sees an engine RPM higher than this value, it will use the current fuel/ign setting, and throw a 100% cut to prevent the engine to over-rev pass this set limit.

Note: To complety remove the hard cut RPM value, enter correct password, enter a value above 18000rpm OR below 1000rpm.



Example to set an ultimate engine RPM limit of 8500rpm, but also have a smooth revlimiter.

clip1790

1. Set the RPM Lock password, then press the Set RPM lock RPM button, enter password and enter the desired ultimate engine rpm.



clip1791

2. Set the normal rev limit to the desired level, here we start to limit at 8000rpm and using a control range of 500rpm. At 8001rpm there will be a 1% cut, and at 8500rpm there will be a 100% cut.
