Wheel setup



used wheel setup

Specifies which wheel setup the system will use, used for wheel speed calculations.

Setup 1 - uses the tire dimensions from setup 1...

Setup 2 - uses the tire dimensions from setup 2...

Selected by digital input - Setup 1 is default, when the digital input signal wheel setup (use setup 2 when active) is active, setup 2 is used in the system.



setup 1 name

Name of this tire setup, ex street.



setup 2 name

Name of this tire setup, ex drag.





setup x



front wheel circumference

Specifies front wheel circumference, use the Calculate button to Calculate from tire dimension.



rear wheel circumference

Specifies rear wheel circumference, use the Calculate button to Calculate from tire dimension.



Rear Tire growth correction

Specifies the tire growth in percent.



correction

The correction value is interpolated from 0km/h driven wheel speed to the below AT SPEED value.



at speed

Correction to be applied.



Rear tire growth examples

Using your time slip you can tune the growth value.



clip1124

If you time slip is showing 100km/h, but your log says 110km/h, you need to use an correction of 10%. In this example the 10% correction is linear interpolated between the 0 speed and 100km/h. At 200km/h this settings will correct the wheel speed with 20%.











clip0573

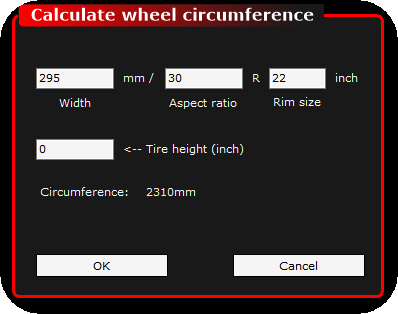

Circumference calculator, enter tire dimension or tire height, press OK when done.





Examples



Two different tire setup, selectable in MDash android app

clip0574

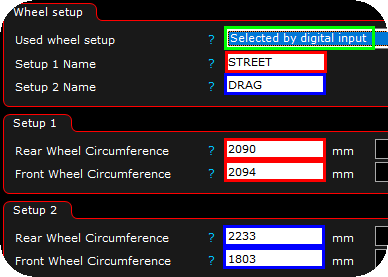

1. Setup your current tire configuration, and used wheel setup = selected by digital input.





clip0575

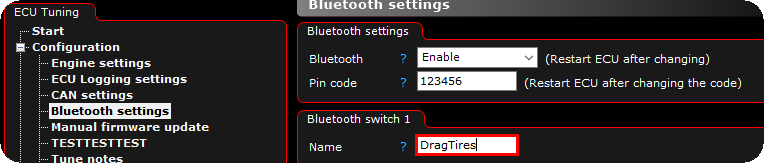

2. Label the Bluetooth switch to for example "DragTires" in Configuration --> Bluetooth settings.





clip0576

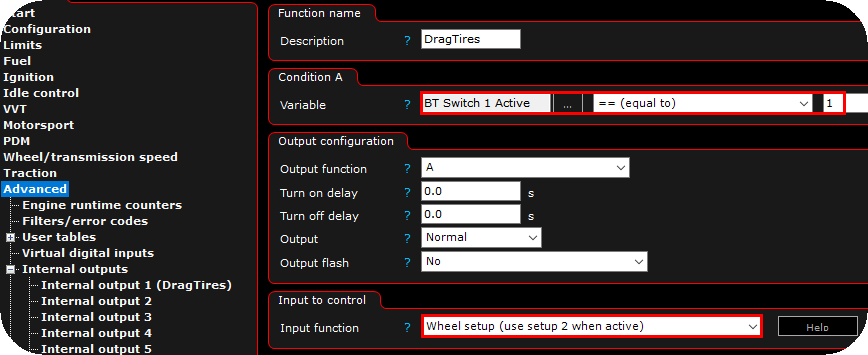

3. Create an internal output to trigger the digital input function wheel setup (use setup 2 when active) when the bluetooth switch 1 is active (1) on MDash.





clip0577

4. Tap and hold on MDash surface, tap on ADD SWITCH.





clip0578

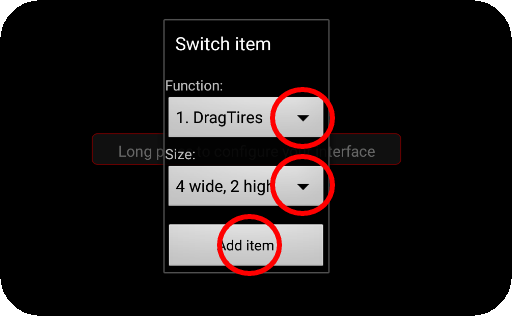

5. Select the Bluetooth switch labeled "DragTires", change the size to suit your needs and finally press Add item.





clip0579

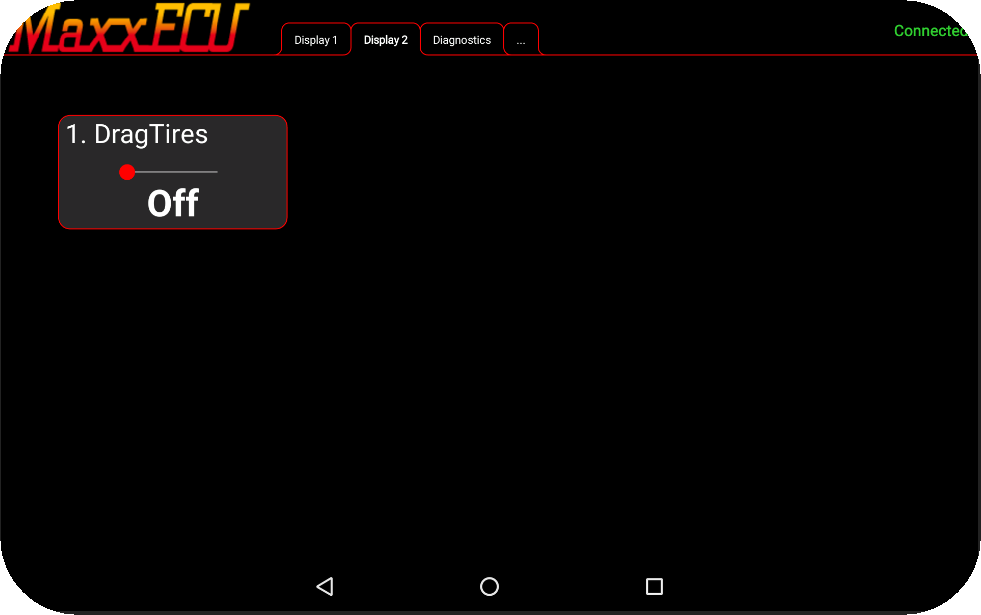

6. The switch is now activated on the MDash surface, when ON, wheel setup 2 is used in the system for wheel speed calculations.
