MaxxECU online help

clip0648

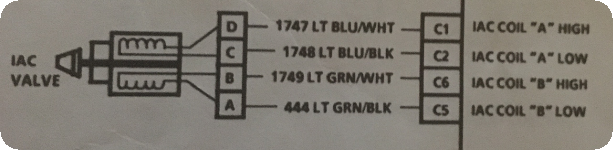

Electrical wirings (Only MaxxECU RACE/PRO)

GPO 11 - A

GPO 12 - C

GPO 13 - B

GPO 14 - D





Software configuration

clip0649

Outputs --> Output config.





clip0650

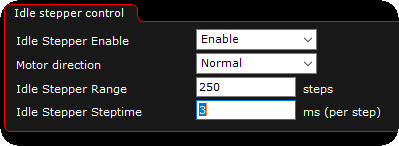

Outputs --> idle stepper motor.
