Engine cut and retard reasons

Scroll Prev Top Next More

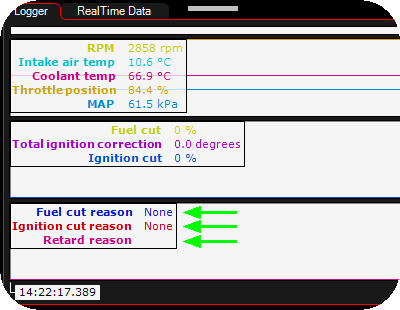

MaxxECU produces three RealTime Data values that can be used to fast determine what is causing a engine fuel/ignition cut or ignition retard reason.







clip0802

By watching either Fuel cut or Ignition cut (in %) you can see if MaxxECU is doing something to limit the engine RPM for some reason, sometimes it is hard to find what is causing this, so we added the ability to get faster help.







Examples



clip0803

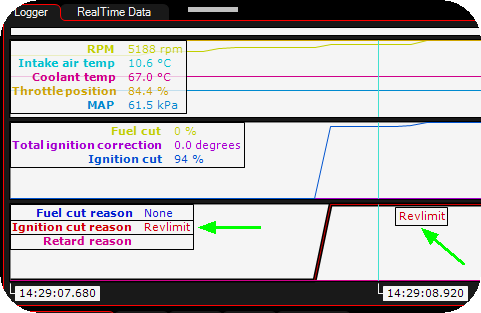

Revlimit by cutting ignition.





clip0804

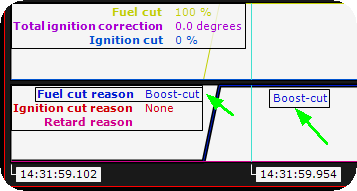

Fuel cut because of boost cut.





clip0805

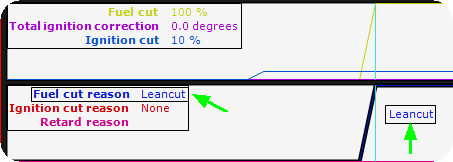

Fuel and Ignition cut because of engine running to lean (lean power cut function).





clip0806

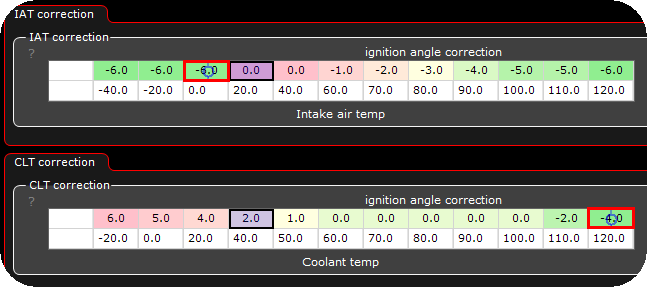

In the above example we have -6 degree IAT ignition correction and -4 degree ignition CLT correction, checking the at this moment, we get the below:



clip0807

CLT and IAT retard reason to retard the ignition.
