Input used with strain gauges with sequential gearboxes.





Shift force trigger settings



auto-zero rate

The force signal is continuously zeroed to correct for sensor drift and small external forces.



re-trigger delay

The min allowed time between 2 shift triggers. Used to ignore short force pulses that can happen during, or right after the shift.





Shift cut trigger



positive/negative trigger force

Starts the shift cut when the Shift force analog input is above/below the set threshold. The length of the shift cut is set by the shiftcut time table in Shiftcut settings.

Note: if you for example don't want a shift cut on down shift, set the negative trigger force to be outside of your negative shift force calibration.





blip trigger



positive/negative blip trigger

Trigger the throttle blip function when the Shift force analog input is above/below the set threshold. The length of the throttle blip is set by the blip time table in Throttle blip settings.

Note: if you for example don't want a throttle blip on up shift, set the positive trigger force to be outside of your positive shift force calibration.





clip1646

1. Add a shift force sensor on the wired analog input.



clip1647

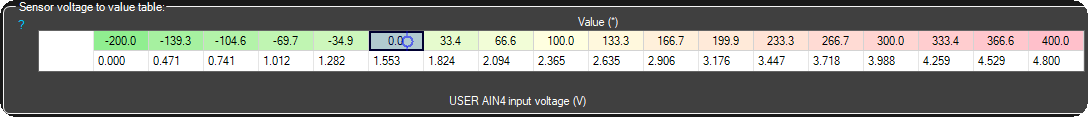

2. Calibrate the shift force sensor, you can use any kind of unit, but Nm is preferable.
