This trigger system supports all Maserati Ghibli Biturbo engines equipped with a distributor.
Compatible models include: 222, 224, 228, 420, 424, 425, 430, Racing, Ghibli (non-ABS), Karif, Spider, in both 18V and 24V engine variants.
Note: It does not support Ghibli ABS, Ghibli GT, Ghibli Cup, Open Cup, Primatist, or Quattroporte IV (QP4), as these use the later static-ignition system.

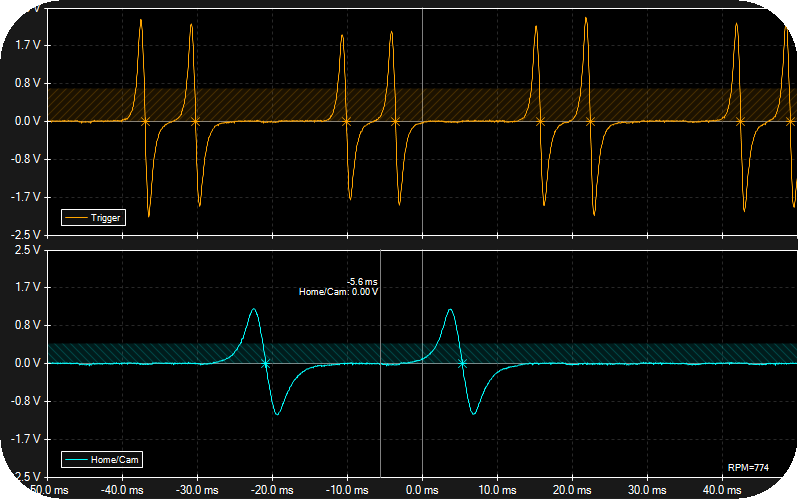

Maserati Ghibli 222 4v CRANK and CAM trigger oscilloscope image.

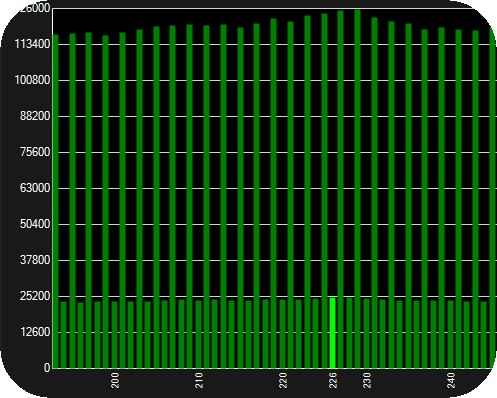

Maserati Ghibli 222 4v crank trigger logger image.

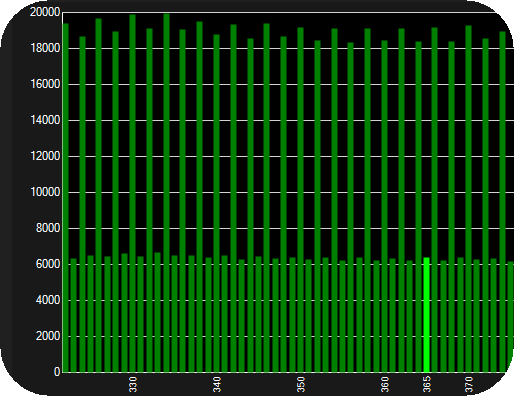

Maserati Ghibli 222 4v HOME/CAM trigger logger image.
