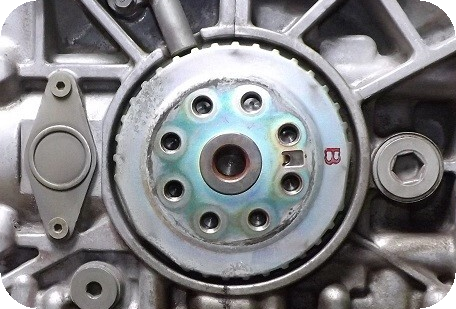

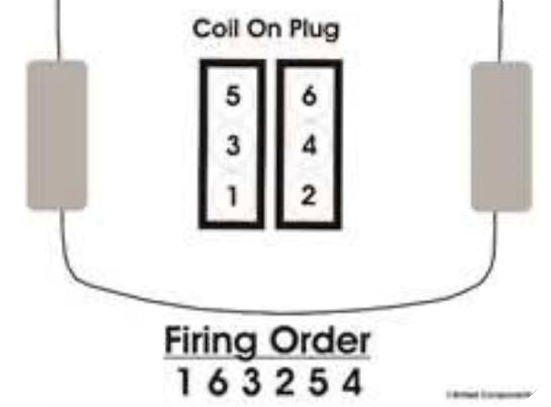

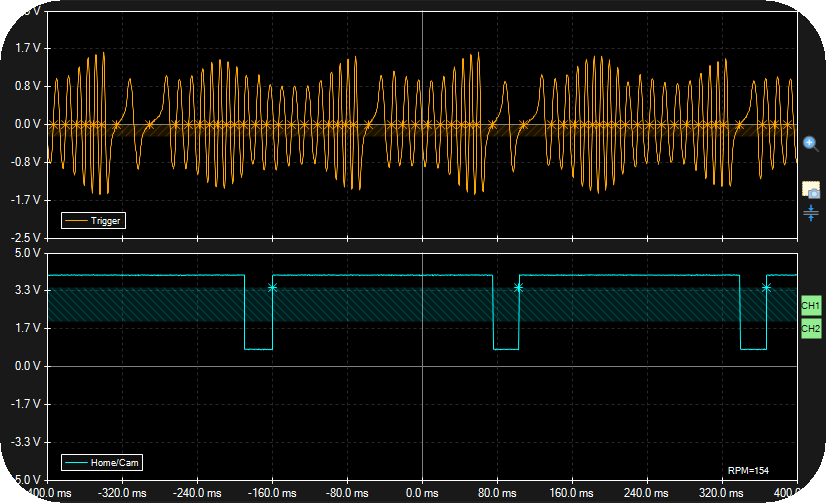

Subaru EZ30 oscilloscope image.

Note: in the above oscilloscope image, the "x" marking the trigger point as rising, is wrong, this one is a FALLING.



clip1639

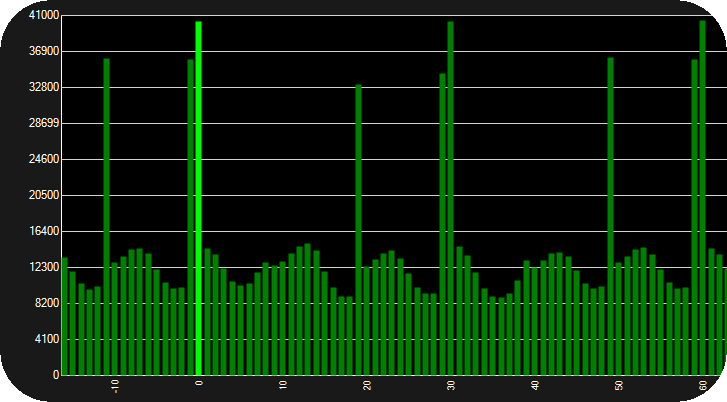

Subaru EZ30 crank trigger logger image.
