OEM CAN protocol for the Ford Focus RS/ST/ST225225 and RS500 models, used in combination with our MaxxECU Race Ford Focus plugin.
Please select the proper OEM CAN protocol in the drop down list, Configuration --> CAN settings, OEM CAN Protocols.
Inputs (working)
•Clutch depressed
•Traction button
•AC request
•All four wheel speeds from ABS
Outputs (working)
•Tachometer (RPM)
•Check engine light
•Turbo boost (0-1.8bar boost)
•Oil pressure gauge
•Oil temperature
•Low oil level light <-- hardcoded to DIN4 input (used by the plugin).
•Engine temperatures
•Immobilizer light
•Traction light
•Speedometer
•Odometer
•Shiftlight indication on some ST225 models, uses the current revlimiter value - 500rpm to trigger the light.
Not working/issues
•ODBII diagnostics not available with MaxxECU connected, use stock ECU during diagnostics.
•Fuel consumption
Changelog
•Brake signal added to the output stream.
•AC request update.
•Wheel speed correction function added.
•AC request updated.
•Ford Focus ST support added.
•Smoother speedometer output in dash.
•Initial support for this CAN protocol.
Confirmed to work models
•2011 Ford Focus RS, Bosch 0261 209 484 PCM.
•2011 Ford Focus ST, Bosch 0261 209 048 PCM.

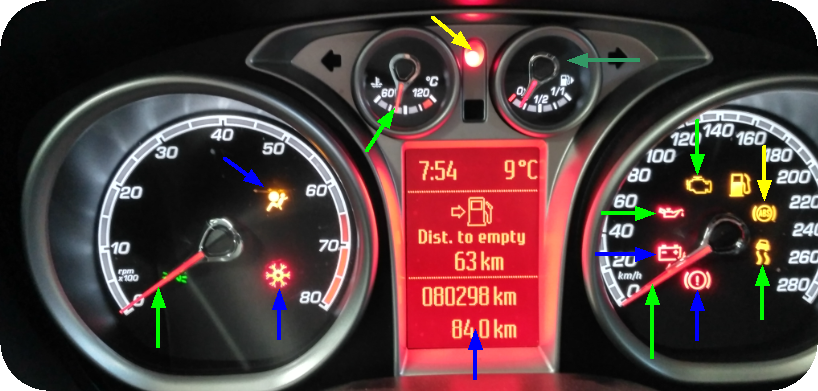

Ford Focus RS instrument cluster
Ford Focus RS dashboard.
Arrow explanation
Green (light): Working.
Green (dark): Working (but not controlled by CAN).
Blue: Not ECU controlled.
Orange: Partly controlled by MaxxECU.
Yellow: Turned off.
Notes
•The "oil pressure" signal in dashboard to the right is a "simulated" oil pressure signal (from RPM and oil temperature).
•Check engine light is connected to MaxxECU error diagnostics.
Example of the instrument cluster during idle on the Ford Focus RS.
Wheel circumference must always be calibrated using an OEM CAN protocol
When we calibrate the wheel speeds from an OEM vehicle (to make an OEM CAN Protocol), we always use the stock wheel sizes, so to get correct wheel speeds within MaxxECU, you must calibrate your wheel dimensions, since they are used to show you the correct speed in MaxxECU.
