The log viewer has the same functionality as the Live-logger, but adds a few more features in the right click menu.
Open log-files
Open log files from computer
Press the above button, browse and select the log-file to be viewed from your computer.
Download logs and view instantly
Click the Download logs... button, a new dialog will pop up. Select the log you want to download, press download selected (or use other buttons for different operations).
The open file when done, will first download, then automatically open this in the log viewer.
Right click options in the log viewer
The right click menu in the log viewer.
Selection (only available when a selection is made)
By clicking (left mouse button) anywhere in the logger area while holding SHIFT button, sets start position. The secondary click while holding SHIFT, set end position. Right clicking on the selected area enables this new menu with options for the selected area.
When an selection is made, hover the mouse over a value, current value will be visible as the min, max and average value.
Select channels
Select engine data values by adding them using the check boxes.
Note: Everything is always logged when the live-logger is running, and this options brings a new windows with available channels to show, which means you can show values after a dyno-pull even if it was not visible during the run.
Channel setup
Change scaling, color for common channels used instead of auto coloring/scaling.
Channel presets
Used to save or load different presets with already configured RealTime Data values to be in the log-file. Available for tuners who tune a lot of different cars and want to speed up the tuning process instead of manually change values to been seen before each dyno session.
Zoom
Example of a 8x zoom.
The same area, but with a 16x zoom instead.
Color
Example of the white color background.
Example of a the black color background.
Time reference
The set time reference can be used to mark launch position, for easy comparison with a different run, as an example. All options are in the right click menu.
Optionally you can enter timeslip data, to be automatically marked in the logger for easier readings of the log. Right click on the launch position in the log and select Time reference, set time reference 0.
Note: Either time after launch or engine run time must be logged to ensure this feature.
Add/remove plot areas
Easy to add/remove plot areas by right clicking on the live-logger.
Compare to another log-file
The compare to another log-file feature is very handy when comparing logs, if you set the Time reference, it will automatically sync their position, if you want to tweak the positions, hold CTRL button and use arrow left/right keys to move the overlaying log-file.
Keep windows on top
When selected, the log viewer windows is always on top over the main MTune window.
Log viewer connection to tables
When moving around in the log viewer, a red cursor position marker is always visible in the selected table to show position, based on the actual log data to easy find spots to tune.
Tabbed options
The tabs available in the log viewer.
All logged data
Well, all the logged data available, viewable as data labels.
Scatter plot
The Scatter plot can give you "data over time" to easily find spots that are otherwise hard to track.
Shows data as it relates to 3 variables, needs a large sets of data to be useful.

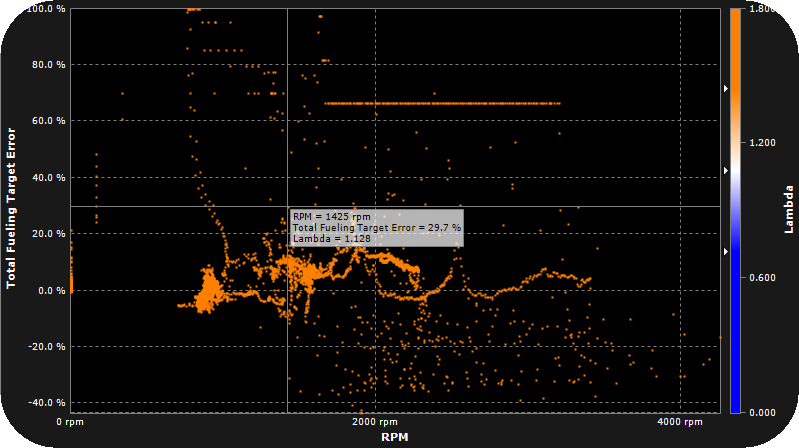

1. Scatter plots show data as it relates to 3 variables. Select the three variables.
2. In this example you can see RPM vs Total Lambda Error vs Lambda. This graph shows there is very little error between 2000-4000rpm and .800-.900 lambda.
3. Optionally, you can right-click on the background, this options allow you to change the color range to suit your screen and surroundings better.
Notes/Timeslip
Time reference
The set time reference can be used to mark launch position, for easy comparison with a different run, as an example. All options are in the right click menu.
Optionally you can enter timeslip data, to be automatically marked in the logger for easier readings of the log. Right click on the launch position in the log and select Time reference, set time reference 0.
Note: Either time after launch or engine run time must be logged to ensure this feature.
Search
Search in the log file with a certain condition, in the above example engine ROM above 1500 is marked in the log viewer, to easily find spots.
Note: Remember to always have the correct tune file opened in MTune when viewing log-files, it uses units and other data from the tune-file (which is not saved in the actual log-file).
