MaxxECU Documentation

These outputs are controlled directly from the ECU under the normal ECU output settings. These can be fuel pumps, radiator fans, etc. With or without PWM control.

Note: When the ECU is turned off, these outputs are also turned off.





Example



clip1371

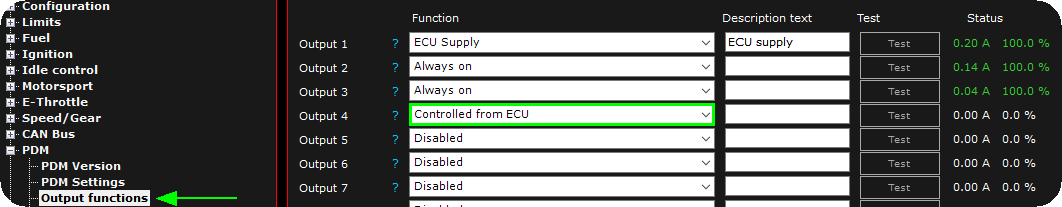

1. Activate the controlled by the ECU output function on one or several PDM outputs.



clip1372

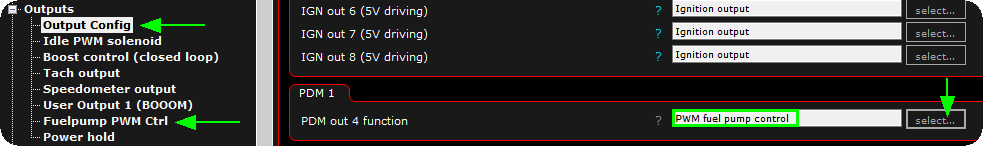

2. In Outputs --> Output config, PDM and the relevant PDM out function, select your output function, in this example a PWM fuel pump control function.
