The MaxxECU RACE adapter for Audi with ME 7.5 ECUs can only be used with MaxxECU RACE.

(for information on the old MaxxECU V1 + E-Throttle module adapter, click here)





Vehicle cover list

Vehicle

Engine code

Year

LSU sensor

Note

Audi A4

APU

1999

External sensor needed


Audi S3

BAM

1999 - 2003

Uses stock LSU 4.2 sensor


Audi S3

AMK

2000-2003

Uses stock LSU 4.2 sensor


Audi S3

APY

1998-1999

External sensor needed


Audi S3

AUL

1999-2001

External sensor needed



Golf IV GTI

AUM/AUQ

2002+

Uses stock LSU 4.2 sensor


Skoda Octavia RS

AUQ

2000-2005

Uses stock LSU 4.2 sensor


Seat Leon

AMK/ARY/AUQ

2002+

Uses stock LSU 4.2 sensor


Seat Leon

ARY

2000-2004

Uses stock LSU 4.2 sensor


Seat Leon

AJQ

2001+

Uses stock LSU 4.2 sensor


Audi TT

APX

1999

External sensor needed


Audi TT

APX/APP/AJQ

2000+

External sensor needed


Audi TT

AUM/AUQ/ARY/BAM

2002+

Uses stock LSU 4.2 sensor


Audi A4

BEX

2002 - 2005

Uses stock LSU 4.2 sensor


Note: No auto transmission support on any model!

Note: Not all ME 7.5 have CAN pinned in the ODB connector for ODBII functionality.





Control options

Options

OEM ECU PIN

MaxxECU IO

RACE

Note

E-Throttle

117/118

GPO 11/12

Yes



Boost solenoid (OEM)

104

GPO 1

Yes



VVT solenoid

115

GPO 2

Yes



Electrical thermostat

116

GPO 3

Yes

Only on some models (A4, BEX)

Canister

64

GPO 4

Yes


Fuel pump

65

GPO 5

Yes



IAC cutoff valve

105

GPO 6

Yes



Tachometer

37

GPO 8

Yes



Main relay

21

INJ 5

Yes



Error light

47

INJ 6

Yes

Audi ME 7.5 CAN

Secondary air pump

66

INJ 7

Yes



FAN (PWM controlled)

24

INJ 8

Yes

Only on some models (A4, BEX)

Knock sensors (OEM)

106,107

KNOCK1, KNOCK2

Yes



Vehicle speed

54

DIN 1

Yes

Also from CAN, Audi ME 7.5 CAN

Clutch switch

39

DIN 2

YES



EPC light

48

-

CAN only!

Audi ME 7.5 CAN

Intake air solenoid

9

-

No



Instrument cluster/ABS



Audi ME 7.5 CAN

YES


Traction button



Audi ME 7.5 CAN

YES


Fuel consumption

81

-

No

Audi ME 7.5 CAN

Bluetooth (MDash)



-

Yes


EGT option



-

Yes, direct

6 EGT direct in harness





Plugin adapter description

clip0347

1

MaxxECU RACE CMC connector 1

2

MaxxECU RACE CMC connector 2

3

Vehicle harness adapter

4

16-pin extra connector

5

8-pin DTM connector (for external WBO)

6

MaxxECU built-in EGT (1-6) mini-k connectors





ECU location and installation

Stock ECU is located in engine bay on driver side or under the windshield plastic cover, depends on which vehicle you have.



1.Remove the plastic guard where the ECU is located.

2.Disconnect battery from vehicle.

3.Remove and disconnect stock ECU from vehicle harness.

4.Install MaxxECU adapter harness.

5.Route the included MaxxECU MAP-sensor hose to the intake manifold and connect into the MaxxECU.

6.Route wide band lambda cables to exhaust system, install lambda sensor in exhaust and wire the lambda sensor as instructed below if your vehicle not have a stock LSU sensor(s) mounted from factory (see vehicle cover list on the top if this page).



Note: MaxxECU RACE plugin ECU kit, might not fit into the standard plastic ECU box. Make sure to mount the ECU away from heat or water!





clip0501

Remove the plastic cover where the stock ECU is located, 5pcs T27 screws.





clip0502

Remove the left side fuse box cover.





clip0503

Remove the above fuse and relay central, fastened with 2pcs 10mm screws.





clip0504

The removed fuse and relay central.





clip0505

MaxxECU RACE fits perfectly between the fuse and relay central and the steering column. Some modification needs to be done to a plastic relay holder and needs to be moved away.

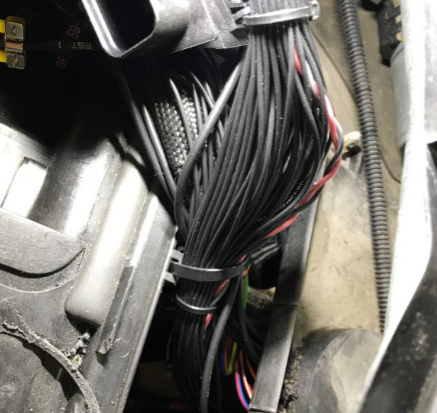

clip0506

Route the adapter harness thru the passage down to MaxxECU RACE.

Note: Please install the CMC connectors in MaxxECU RACE before securing the RACE unit.





clip0507

Preferable route all extra cables within stock rubber bushings.





8-pin extra connector (WBO)

clip0400

Seen from the wire side of the pre-wired connector.





Pin

Description

1

WBO: VREF

2

WBO: VS

3

WBO: Shield

4

WBO: IP

5

WBO: RCAL

6

-

7

WBO: +12V

8

WBO: Heater-

Note: If you vehicle is equipped with a stock LSU 4.2 sensor, do not connect a external here, see vehicle cover list above.





16-pin extra connector

16-pin_connector

Note: Pinout is from the wire side of the pre-wired cable harness.



Pin

Description

Usage

Note

1 (H)

+5V sensor supply





2 (G)

Sensor GND





3 (F)

TPS AIN

0-5V analog input

TPS analog input can be used for external sensors, such as oil pressure, fuel pressure etc

4 (E)

AIN 4

0-5V analog input



5 (D)

DIN/VR 4

Digital input



6 (C)

DIN/VR 5

Digital input



7 (B)

-

-



8 (A)

GPO 7 / DIN 3

Output or digital input



9 (S)






10 (R)






11 (P)





12 (N)

+12V

Output at ignition on


13 (M)

Engine GND




14 (L)

AIN 1

temperature input


15 (K)

AIN 2

temperature input


16 (J)

AIN 3

0-5V analog input








See also

Product page

Example wirings of extra input and output

Download base maps

Trigger problems

Engine start
