Chevrolet Corvette C6 (E38 ECM)

Scroll Prev Top Next More



Vehicle cover list

Vehicle

Engine code

Year

LSU sensor

Note

Cadillac Escalade

6.2L (V8)

2007 - 2014

External sensor needed (included)

Not verified yet!

Chevrolet Avalanche

5.3L, 6.0L (V8)

200 7- 2013

External sensor needed (included)

Not verified yet!

Chevrolet Corvette C6

6.0L, 6.2L, 7.0L (V8)

2006 - 2013

External sensor needed (included)

2006 Verified

Chevrolet Camaro SS

6.2L, 7.0L (V8)

2010 - 2015

External sensor needed (included)

Not verified yet!

Chevrolet Express

4.8L, 5.3L, 6.0L (V8)

2008 - 2015

External sensor needed (included)

Not verified yet!

Chevrolet Equinox

3.4L (V6)

2007 - 2009

External sensor needed (included)

Not verified yet!

Chevrolet Impala

3.5L, 3.9L (V6)

2007 - 2009

External sensor needed (included)

Not verified yet!

Chevrolet Malibu

3.5L, 3.9L (V6)

2007 - 2009

External sensor needed (included)

Not verified yet!

Chevrolet Monte Carlo

3.5L (V6)

2007 - 2008

External sensor needed (included)

Not verified yet!

Chevrolet Silverado

4.8L, 5.3L, 6.0L, 6.2 (V8)

2007 - 2013

External sensor needed (included)

Not verified yet!

Chevrolet SS

6.2L (V8)

2014 - 2016

External sensor needed (included)

Not verified yet!

Chevrolet Suburban

5.3L, 6.0L, 6.2L (V8)

2007 - 2014

External sensor needed (included)

Not verified yet!

Chevrolet Tahoe

4.8L, 5.3L, 6.2L (V8)

2007 - 2014

External sensor needed (included)

Not verified yet!

GMC Savana

4.8L, 5.3L, 6.0L (V8)

2008 - 2015

External sensor needed (included)

Not verified yet!

GMC Sierra

4.8L, 5.3L, 6.0L, 6.2 (V8)

2007 - 2013

External sensor needed (included)

Not verified yet!

GMC Yukon & Denali

4.8L, 5.3L, 6.0L, 6.2L (V8)

2007 - 2014

External sensor needed (included)

Not verified yet!

Holden Commodore & HSV

6.0L, 6.2L (V8)

2006 - 2017

External sensor needed (included)

Not verified yet!

Hummer H2

6.2L (V8)

2008 - 2009

External sensor needed (included)

Not verified yet!

Pontiac G6

3.5L, 3.9L (V6)

2007 - 2009

External sensor needed (included)

Not verified yet!

Pontiac G8

6.0L, 6.2L (V8)

2008 - 2010

External sensor needed (included)

Not verified yet!

Pontiac Torrent

3.4L (V6)

2007 - 2009

External sensor needed (included)

Not verified yet!

Saturn Aura

3.5L (V6)

2007 - 2009

External sensor needed (included)

Not verified yet!

Note: Manual transmission only!

(we are searching for an Swedish Corvette C6 Auto gearbox customer to do the implementation, please contact if you have one we can do some testings on).





Control options

Options

OEM ECU PIN

MaxxECU IO

MaxxECU PRO

Note

8 injection sequential

-

INJ 1-8

YES



8 ignition sequential

-

IGN 1-8

YES



E-Throttle

B5/B6

GPO 11, GPO 12

Yes



Camshaft solenoid

B16

GPO 30

Yes

Only on some models (Camaro SS (L99 with automatic gearbox)

Evap canister purge solenoid

B8

GPO 29

Yes


Evap canister vent solenoid

A61

GPO 24

Yes



Fuel pump primary

A50

GPO 15 (+12V)

YES



Fuel pump secondary

A51

GPO 16 (+12V)

YES



Tachometer

A48

GPO 8

YES



AC magnetic clutch

A63

GPO 25

Yes



AC pressure signal

A12

AIN 9

YES



Starter relay coil supply

A4

DIN 5

YES



Low FAN

A58

GPO 2

YES



High FAN

A17

GPO 1

YES



Knock sensors (OEM)

B26, B29

KNOCK1, KNOCK2

YES



Vehicle speed (individual wheel speed)



GM E38 ECM CAN

YES



Narrow band oxygen sensors

-

-

NO

Uses external (and included) Bosch LSU 4.2 wide band sensors

MAF (OEM)

A41

AIN 17

Yes

MAF should be removed. Use stock MAP sensor or use the MaxxECU built-in.

Service light/check engine light

A68

GPO 26

Yes



Instrument cluster/ABS



GM E38 ECM CAN

Yes



Traction button



GM E38 ECM CAN

Yes



Fuel consumption



GM E38 ECM CAN

NO



Fuel level primary input

A16

AIN 1

YES



Fuel level secondary input

A70

AIN 2

YES



Brake switch signal

A9

DIN 1

YES


ECT/CLT

B21

CLT

YES



Oil level switch

B33

DIN 2

YES

Only on early models

Oil pressure sensor

B50

AIN 11

YES



Generator turn on signal

B61

IGN 9

YES



Clutch position

A26

AIN 18

Yes*

Only available in REV2+ plugin adapters!

IAT (in OEM MAF)

A37

IAT

YES

Also paralell connected with extra 2-pin GT150 connector (6)

Fuel tank pressure

A24

AIN10

YES

Not used for anything, but wired

Starter enable relay control

A52

GPO 5

YES



Starter enable relay control

A67

INJ 13

YES



VSS output to ABS system

A57

GPO 7

YES



VSS high signal

A71

IGN 12

Yes

Experimental output

VSS low signal

A72

IGN 10

Yes

Experimental output

Generator field duty signal

B32

-

NO

Not needed

MAP sensor (OEM)

B58

AIN 12

Yes

Used as MAP sensor input in default NA basetune, for forced induction, please use the built-in MAP sensor in MaxxECU

DME relay

A59

GPO 23

Yes


Bluetooth (MDash)





Yes


EGT option





Yes, 8 Directly


Cyl 6/7/10 shutoff valves

B9, B14, B10

INJ 14/16/15

Yes*

Only available in REV3 plugin adapters!

Cyl 4 shutoff / Reverse gear lockout solenoid

B11

INJ 12

Yes*

Only available in REV3 plugin adapters!

Fuel economy meter in dash


GM E38 ECM CAN

Yes

Needs to be manually calibrated, uses MaxxECU fuel consumption caluclation for output





Plugin adapter description

clip0527

1

MaxxECU CMC connector 1

2

MaxxECU CMC connector 2

3

MaxxECU CMC connector 3

4

MaxxECU CMC connector 4

5

Vehicle harness connectors

6

2-pin extra connector for external IAT

7

3-pin connector (Flex fuel sensor)

8

WBO 1

9

16-pin extra connector

10

WBO 2

11

EGT harness (EGT1-8)





ECU location and installation

Stock ECU is located behind right fender.



1.Disconnect battery from vehicle.

2.Remove right fender.

3.Remove and disconnect stock ECU from vehicle harness.

4.Remove old ECU brackets.

5.Install and secure the MaxxECU PRO unit with included screws.

6.Install MaxxECU PRO adapter harness.

7.Route the included MaxxECU MAP sensor hose to the intake manifold and connect into the MaxxECU (for boosted applications)

8.Optionally install a intake air temperature sensor (IAT) which is recommended (especially on boosted applications) and connect to MaxxECU.







clip0536

ECU location on the Corvette C6.





clip0538

Remove the wheelhouse liner/mudguard, separated into two parts, remove them both.





clip0537

Detach the fender from the front spoiler.





clip0539

Remove the two most right screws that keeps the front spoiler in place in the front, so you are able to gently bend the front to access the hidden fender screw.





clip0540

Gently move the front spoiler in the forward direction to access the hidden fender screw and remove it.





clip0541

Remove all fender screws.





clip0542

Somewhere here behind the stock ECU is another screw that holds the fender, please remove this one also.





clip0543

Remove the 2 ECU connectors (red arrows)

Note: Please do not pay attention to the red/black cable (blue arrow) in this picture, it is just a poor side indicator job...





clip0546

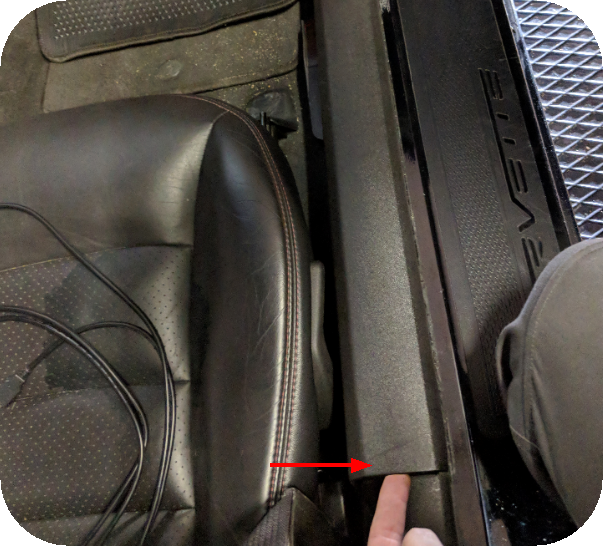

Open the passenger door, lift up the step-in protector and remove it.





clip0547

Pull down the plastic protection under the passenger glove compartment.





clip0548

Use a sharp knife to cut a hole in the cable entry which is located on the other side of the firewall of the glove compartment, in the engine bay.





clip0549

Route the included USB cable thru, you might need to use a screwdriver or other thicker object to help push the cable through.





clip0550

The USB cable routed through the firewall, place the cable under the glove compartment for future usage.





clip0551

Lift up the stock ECU and push it outwards to remove it.





clip0545

Mount the MaxxECU PRO unit with the included screws, be careful about the mounting position, see next step.





clip0544

Example of MaxxECU PRO mounting position on the Corvette C6, be sure to have enough room between the MaxxECU PRO brackets and the door (red arrow), try to open the door fully before securing the MaxxECU PRO unit for good.







clip0553

Install the MaxxECU adapter harness into the MaxxECU PRO unit by clicking in all CMC connectors.

Note: for boosted applications, please mount the included MAP sensor hose into the pneumatic connector (green arrow) in the MaxxECU and put the other end into the intake manifold. (The Plugin solution uses the stock MAP sensor mounted right after the E-Throttle body, but that sensor does not work with boosted applications). Do not forget to disable the external MAP sensor in the configuration for MaxxECU to understand to use the built-in MAP sensor instead in this case.





clip0552

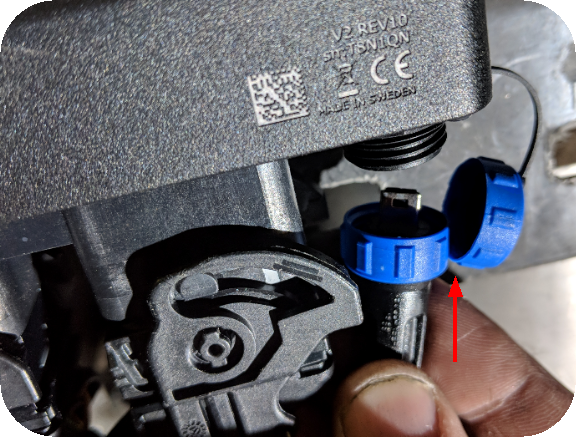

Mount and secure the included USB cable in the MaxxECU PRO unit.





clip0554

Connect vehicle harness connectors with MaxxECU adapter harness.





clip0555

Route the included Bosch LSU 4.2 sensors to each exhaust pipe, depending on your installation you might need to weld a new bung to make the sensors fit in the exhaust system.

Note: Make sure you route the LEFT side exhaust sensor to the WBO 1 connector, and the RIGHT side exhaust to WBO 2 connector, all cables are printed with their function.





clip0556

Mount the included USB antenna.

Hide the extra EGT mini-K connector if they are not used.

Use some wire straps to secure the stock vehicle harness from flying around.





clip0557

Put back the wheel house mudguards, and reinstall the fender and frontspoiler. Secure all screws.



Connect battery.

Install MTune on your PC.

Ignition on.





3-pin extra connector (Flex fuel sensor)

clip0401

Seen from the wire side of the pre-wired connector.



Pin

Description

1

+12V power supply

2

Sensor GND

3

DIN 4 (sensor signal)





8-pin extra connector (WBO 1. Cylinder 1,3,5,7 - LEFT)

clip0400

Seen from the wire side of the pre-wired connector.





Pin

Description

1

WBO: VREF

2

WBO: VS

3

WBO: Shield

4

WBO: IP

5

WBO: RCAL

6

-

7

WBO: +12V

8

WBO: Heater-





8-pin extra connector (WBO 2. Cylinder 2,4,6,8 - RIGHT)

clip0400

Seen from the wire side of the pre-wired connector.





Pin

Description

1

WBO: VREF

2

WBO: VS

3

WBO: Shield

4

WBO: IP

5

WBO: RCAL

6

-

7

WBO: +12V

8

WBO: Heater-





16-pin extra connector

16-pin_connector

Note: Pinout is from the wire side of the pre-wired cable harness.



Pin

Description

Usage

Note

1 (H)

AIN 3

0-5V analog input



2 (G)

AIN 4

0-5V analog input



3 (F)

+12V

Output at ignition on



4 (E)

Engine GND

-



5 (D)

CAN 2 H

-



6 (C)

CAN 2 L

-



7 (B)

GPO 7/DIN 3

Output or digital input



8 (A)

+5V sensor supply

-



9 (S)

INJ 9

Output



10 (R)

INJ 10

Output



11 (P)

INJ 11

Output



12 (N)

Sensor GND

-



13 (M)

AIN 13 (0-5V)

0-5V analog input



14 (L)

AIN 14 (0-5V)

0-5V analog input



15 (K)

AIN 15 (0-5V)

0-5V analog input



16 (J)

AIN 16 (0-5V)

0-5V analog input









Optional: Install external intake air temperature (IAT) sensor

Some vehicles are not equipped with an intake air temperature (IAT) sensor and MaxxECU plugin solutions do have the

option to add a sensor.





clip0218

The intake air temperature (IAT) sensor should be mounted to sense fresh air flow going into the engine.

Depending on the intake manifold construction, the position of the temperature sensor is not given, but preferably mount

the sensor in the intake, or in the pipe before/after the throttle.





IAT wiring

clip0219

MaxxECU plugin solution are equipped with an optional 2-pin connector for optional IAT wiring.





clip0220

Mating connector and wires for external IAT sensor.



Note: This plugin solution do take use if the stock IAT in the MAF, but usually the MAF is removed and the extra 2-pin GT150 connector is parallel wired with the MAF IAT.





See also

Product page

Example wirings of extra input and output

Download base maps

Trigger problems

Engine start
