Example to set the gearbox drivemodes from the tune selector (using a User tables). Tune selector 1/2 --> STREET (1), Tune selector 3 --> SPORT (3), Tune selector 4/5 --> TRACK(5) and Tune selector 6 --> DRAG(10), see 8HP RealTime Data.

Note: MaxxECU only accepts the values: 1,3,5 and 10 into this analog channel.

Example on how to verify the actual Dodge 8HP drivemode.

8HP shifter

Shifter type

Specifies which shifter to be used, see 8HP shifter.

•OE Dodge shifter - The supported Dodge shifter is available on the bus.

•shifter emulation - Uses digital inputs to control the shiftings, see 8HP shifter emulation.

•BMW Fxx 8HP shifter - BMW F-series 8HP shifter is available on the bus.

Below shifter options, only available for the BMW Fxx 8HP shifter and requires the Binary4 8HP TCU firmware.

Shifter launch/transbrake option

Use the BMW shifter to trigger the Launch control switch, enable stage in STREET, SPORT, TRACK modes, and trigger Transbrake hold button, automatically without custom switch activation.

•enabled, hold D/M+ - Use the BMW button to enable launch/transbrake input automatically by pulling the shifter towards you in either D or M mode.

See, 8HP Launch Control for more information and examples.

Shifter transbrake bump option

Use the BMW shifter to trigger the Transbrake bump/creep button input automatically without custom switch activation.

•enabled,using p-button - The supported Dodge shifter is available on the bus.

See, 8HP transbrake for more information and examples.

8HP shifting options

shift strategy

Specifies if the TCU has an supported or unsupported MAPS memory area.

•MaxxECU TCU maps (1500-9000rpm) using shift point table - Requires our custom MAPS TCU tune, see 8HP TCU firmware and the actual shift points is using the MaxxECU table.

Note: Tuning using HPTuners is NOT possible for the moment.

Blip delay

MaxxECU activates the internal blip trigger when the gearbox downshifts, this specifies the amount of delay in milliseconds to allow the clutch to disengage the seated gear. 0 to 100ms.

Note: Blip is not needed for the 8HP gearbox to properly downshift.

Manual mode upshift offset

In manual mode, to prevent going into the revlimiter, MaxxECU can send a upshift signal before the actual rev-limiter. Example if your limiter is 7800rpm, you would most likely somewhere around 7000rpm start to initiate an upshift command, enter 800rpm here.

Note: enter "0" here to disable the upshift feature in manual mode, it will never upshift even driving in the revlimiter.

Manual mode downshift prevention

Requires the Binary4 8HP TCU firmware.

In manual mode, prevent auto-downshift from the driveshaft table used to prevent engine stall.

•disabled - Will auto-downshift in manual mode to prevent engine stall.

•Enabled - Will NOT auto-downshift in manual mode, this setting MUST be activated if you are a drifter and using clutchkick and locking rear wheels using a handbrake.

Note: Must be enabled for drifting usage, see 8HP for drifting.

Limit Max gear IN DRIVE

Requires the Binary4 8HP TCU firmware.

Option to limit the gearbox from shifting into gear 8 in Drive mode.

•Gear 7 - Will limit the gearbox from trying to go into higher gear than 7 in Drive mode.

•Gear 8 - No shift limit, gearbox can go into gear 8.

8HP kickdown

enable kickdown above TPS

Specifies the minimum throttle position (pedal position if using E-Throttle) where we send the kickdown event to the TCU. 0 = Kickdown disabled.

Note: blip request OVER this TPS value is not possible.

Kickdown lower limit gear

Specifies the minimum gear a downshift can downshift to. Start of high when testing this to make sure you are not downshifting too much which will cause it is up shift directly after the downshift because of he engine rpm limit.

Note: We are also internally calculating which gear it is possible to downshift to based on shift target RPM table (target gear) and the actual engine rpm limiter to prevent overshooting.

8HP transbrake

transbrake activation mode

Specifies how to activate the transbrake feature, require the gearbox mode to be set to DRAG.

•Paddles - Default Dodge style, requiring 2 paddles on the steering wheel.

•Automatic (brake switch activation) - Does not require any paddles, it is magically always activate in DRAG mode and standing still, just press brake, floor it and release brake when you are satisfied to launch the car. Uses the Brake pedal/stop light active input.

•Automatic (transbrake hold activation) - Does not require any paddles, uses the Transbrake hold button digital input switch.

See, 8HP transbrake for more information.

Note: In the Automatic (brake switch activation) mode, do not brake too hard, release the brake a little bit (without activate the brake switch) right before you send it, otherwise it can result in a drivetrain play and potentially cause damages.

transbrake bump time

Requires the Binary4 8HP TCU firmware.

Specifies the length of the bump, from 60 to 120ms. A higher value means a longer bump.

transbrake bump pressure correction

Requires the Binary4 8HP TCU firmware.

Specifies the amount of clutch pressure drop over the controlled clutch.

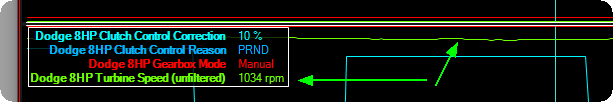

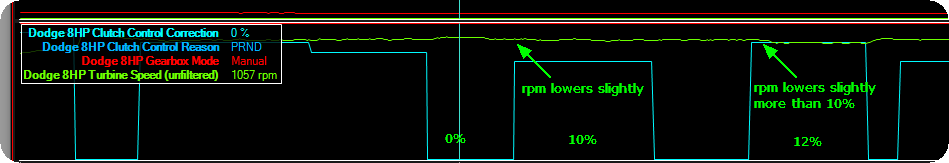

To create the transbrake bump, we reduce the clutch pressure at one clutch over a specified time, which creates the small bump, see Transmission Clutch A/B/C/D/E pressure, and Dodge 8HP Clutch control reason and Dodge 8HP clutch control correction.

Note: The bump will NOT work unless you really push the engine, nothing will happen at 1500rpm and 10% throttle, you need to floor it and really push things.

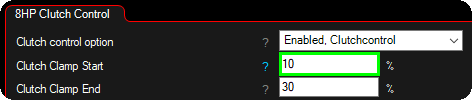

8HP clutch control

clutchkick enable speed.

Specifies the minimum VSS_SPEED before any clutchkick event can be possible.

Note: an ongoing clutchkick event will not be deactivated if the vehicle speed drops below the set speed.

Drifters, see 8HP for drifting.

TCU Diagnostics

Auto erase TCU DTC

Specifies whether to erase all error codes in the TCU at ECU/engine startup.

•Erase tcu dtc upon startup - Tries to erase any TCU error code during startup, and also on engine startup.

•do not erase tcu dtc - Does not erase any stored error code, might caught you to not be able to engage any gear. <-- Do not use this option unless instructed.

TCU diagnostics

•Enabled - Requests some extra TCU diagnostic to get some additional diagnostic values.

•Disabled.

Note: This option might interefere with any other diagnostic tool/HPTuners.
